Discover the Viscount Legend ONE Organ, a portable keyboard with 61 or 73 keys. Featuring 4 sound sections, tonewheel modeling, 240-polyphony, and premium build quality, it’s perfect for stage and studio use. Weighs only 10–11.5 kg

The Viscount Legend ONE 73 features a semi-weighted waterfall keyboard (11.5 kg) with advanced tonewheel modeling, 4 sound sections, and 240-polyphony, combining versatility and premium sound for any performance.

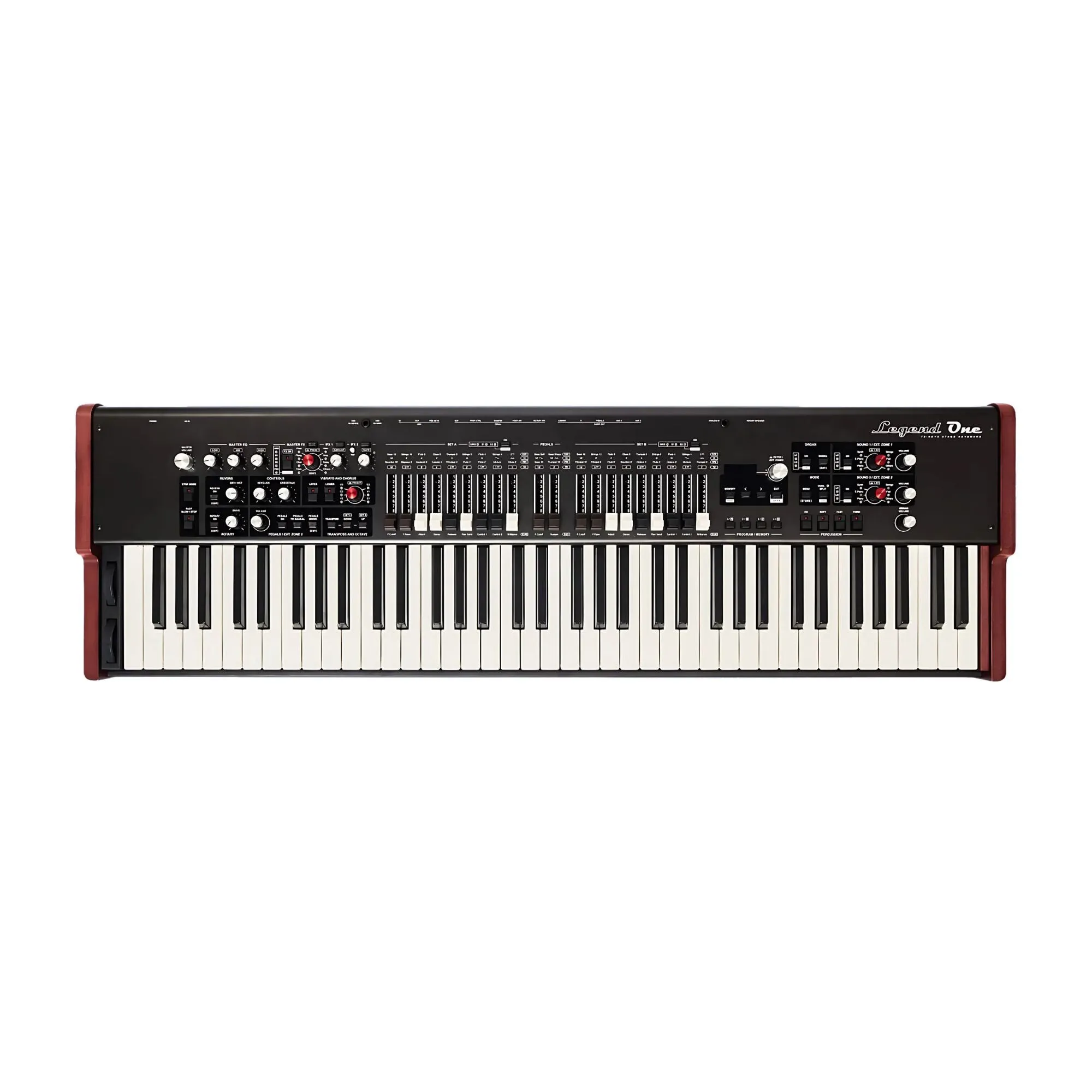

Viscount Instruments Legend ONE Organ (61 or 73 Keys)

The Viscount Legend ONE is a highly portable and versatile keyboard designed to meet the needs of professional musicians and organ enthusiasts. Powered by the innovative Legend Soul Engine, this all-in-one instrument offers four distinct sound sections: Organ, Sound 1, Sound 2, and Pedals. With an extensive library of new acoustic and electric pianos, synths, strings, and more, the Legend ONE delivers stunning sound quality for any performance.

Available in two models, the Legend ONE 61 features a compact waterfall keyboard weighing just 10 kg (22 lbs), while the Legend ONE 73 comes with a semi-weighted waterfall keyboard weighing 11.5 kg (25 lbs). Built with solid wood and metal, the Legend ONE is designed for durability and stage performance.

Key Features

Keyboard

• Type: Waterfall-style; Semi-weighted (61 or 73 keys)
• Modes: Single, Split, Dual
• Touch Curves: 4 Curves 1 Fixed
• Transpose: ±6 Semitones
• Octave Shift: ±2 Octaves

Sound Generator

• Technology: TMT (Tonewheel Modeling Technology) HDS (High Definition Sampling)
• Polyphony: Up to 240 (depending on section)
• Fine Tuning: Adjustable from 427.5 Hz to 452.9 Hz

Organ Section

• Authentic tonewheel organ sounds with 91 polyphony
• Harmonic Percussion: Adjustable settings
• Rotary Speaker Simulation: Customizable with 8 presets 1 user configuration
• Organ Models: B3 (various eras), C3, A100, Farfisa, and pipe organ options

Sound 1/2 Sections

• 119 Instrumental Voices: Pianos, Synths, Strings, Choirs, and more
• Fully adjustable parameters: Audio routing, attack/decay, resonance, and brilliance

Pedals Section

• 22 Bass Models: Including Acoustic Bass, Synth Bass, and Organ Bass
• Additional controls for sustain, octave shift, and velocity

Effects

• Multi-Effects: 14 types, including Tremolo, Phaser, Wah, and Delay
• Reverb: 13 programmable types
• Master EQ: 3-band programmable

Interface & Connectivity

• Drawbars: 20 (9 Upper, 9 Lower, 2 Pedals)
• Display: 128×64 OLED
• Audio: Main L/R, Aux outputs, Pedals out, Headphones
• MIDI/USB: Extensive MIDI and USB connections
• Pedals: Expression, Damp, Rotary Switch support

Build and Dimensions

• Material: Solid wood and metal for durability
• Dimensions:
  • 61-Key Model: 104x46x25 cm (40.94×18.11×9.84”)
  • 73-Key Model: 121x46x25 cm (47.64×18.11×9.84”)
• Weight:
  • 61-Key: 10 kg (22.05 lbs)
  • 73-Key: 11.5 kg (25.57 lbs)

Specifications
