- User-Friendly Binding Process: With simple step-by-step instructions, this mini receiver offers an easy binding process compatible with various FrSky transmitters, including X9D, DJT, DFT, and XJT in D8 mode. Whether you're a beginner or experienced hobbyist, setting up your transmitter with this receiver is hassle-free. See the product description for specific instructions with your model.
- Compact and Lightweight Design: Weighing only 2.2g and featuring a compact dimension of 11mm*24.5mm, this mini receiver is designed for space-saving installations without compromising on performance. Its lightweight construction ensures minimal impact on your aircraft's weight, allowing for agile and responsive flight maneuvers.
- Reliable Performance and Compatibility: Equipped with a 4-channel configuration and a control range of over 500 meters, this receiver delivers reliable signal transmission and precise control, making it suitable for a wide range of RC aircraft applications. Compatible with FrSky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, and DHT, it offers versatility and seamless integration with your existing FrSky radio system.
- Package Contents: 1x 2.4GHz Mini 4 Channel Receiver
X9D - Select D8 mode, power on receiver press and hold BIND, then led light, select BIND on transmitter, receiver led off means binding is completed, transmitter exit binding mode, release BIND key and re-power. DJT, DFT - Hold the TX module button and power on transmitter, at this point the TX module get into binding mode. Power on receiver press and hold BIND, LED off when binding completed, release BIND key after transmitter restart, finally restar receiver.XJT - Dip switch select D8 mode, and then the same way as above.Throttle - Use third channel for throttle Specifications:

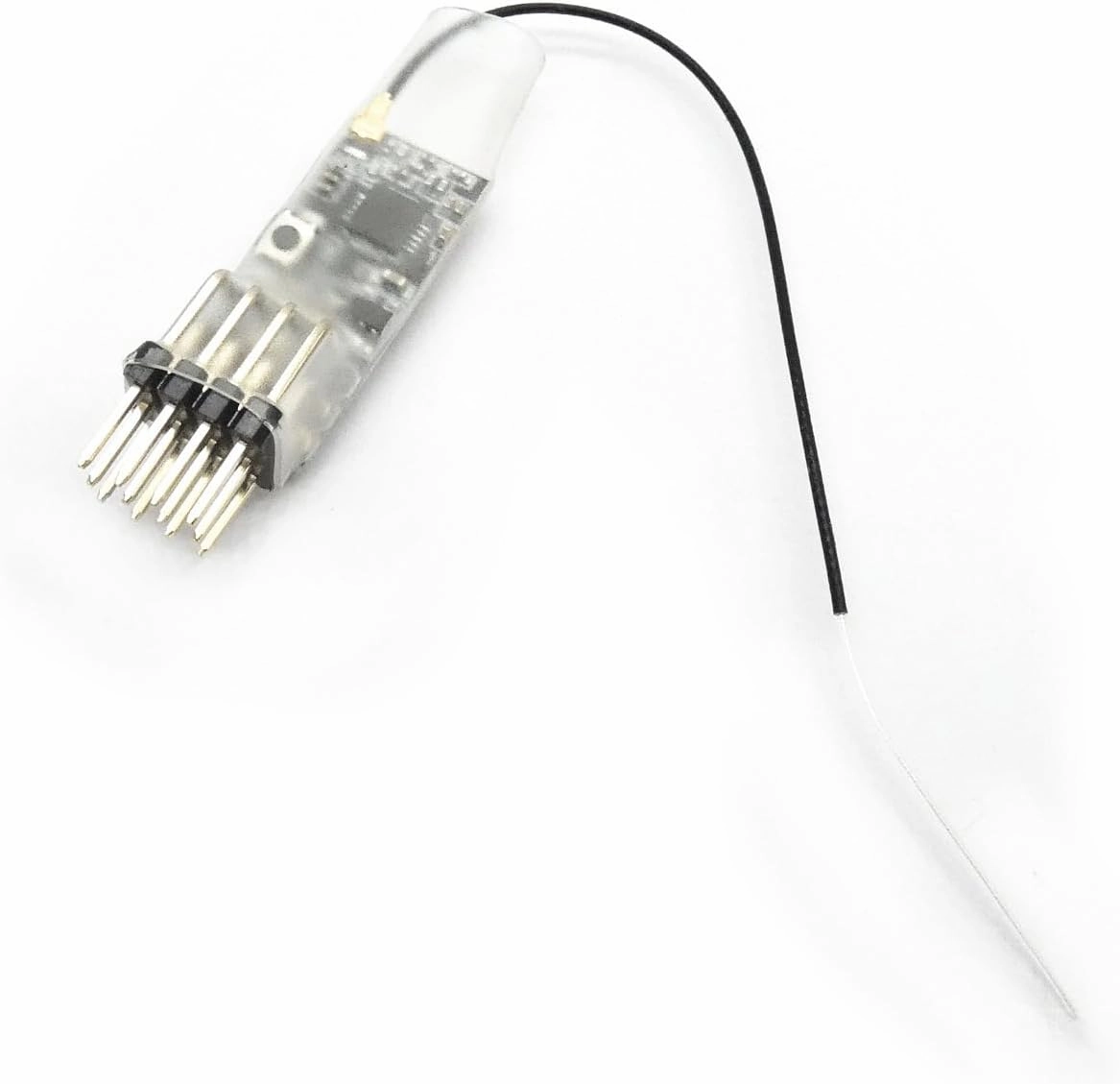

Item Name: 2.4G mini receiver
Channel: 4CH
Weight: 2.2g
Resolution: 1024
PWM Output: Yes
Operating Voltage: 3.5-10V
Current: 50MA
Antenna Length: 100mm
Dimension: 11mm*24.5mm
Control Range:>500M
Compatibility: Compatible with frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT
Package Contents:
1 x FRSKY Protocol 2.4GHz 4-Channel Mini Receiver
