Mounting Style: Through-Hole
Nominal Current Rating: 20 mA
Configuration: Single
Brightness: 100 cd/m²
Viewing Angle: 25°
Item Diameter: 3 mm
Lens Shape: Round
Lens Surface: Clear
Nominal Voltage: 3 V
Package/Case: F3 3MM
Light Intensity: 5000 - 10000 mcd
Item Length: Pin Length 27mm
Brand: GoodLay Optoelectronics
Power Dissipation: 60 mW
Type: Single Chip LED
Number of Pins: 2
Packaging: Bag
Number of LEDs: 50 Pieces
Country/Region of Manufacture: China
Forward Voltage: 3 V

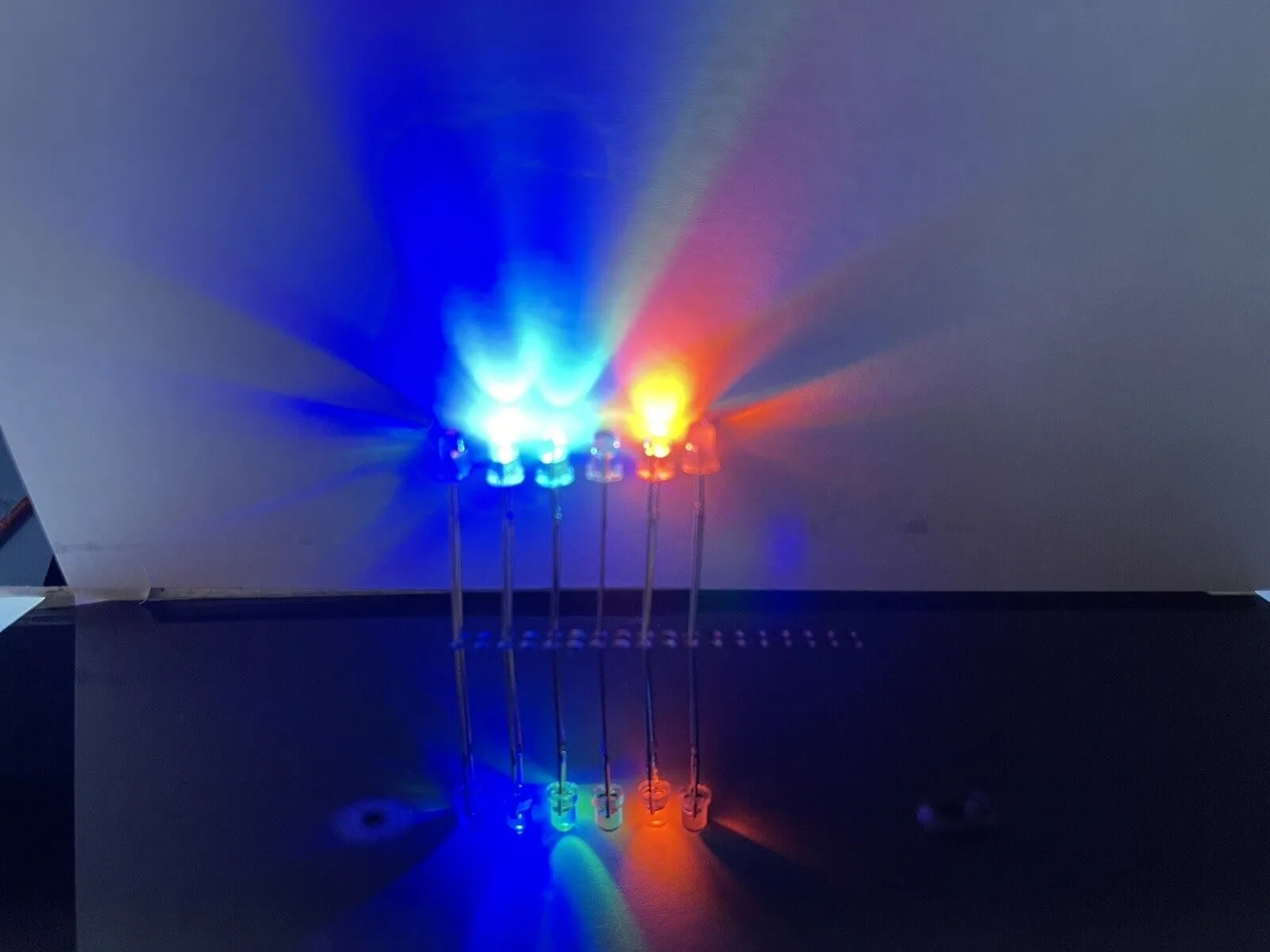

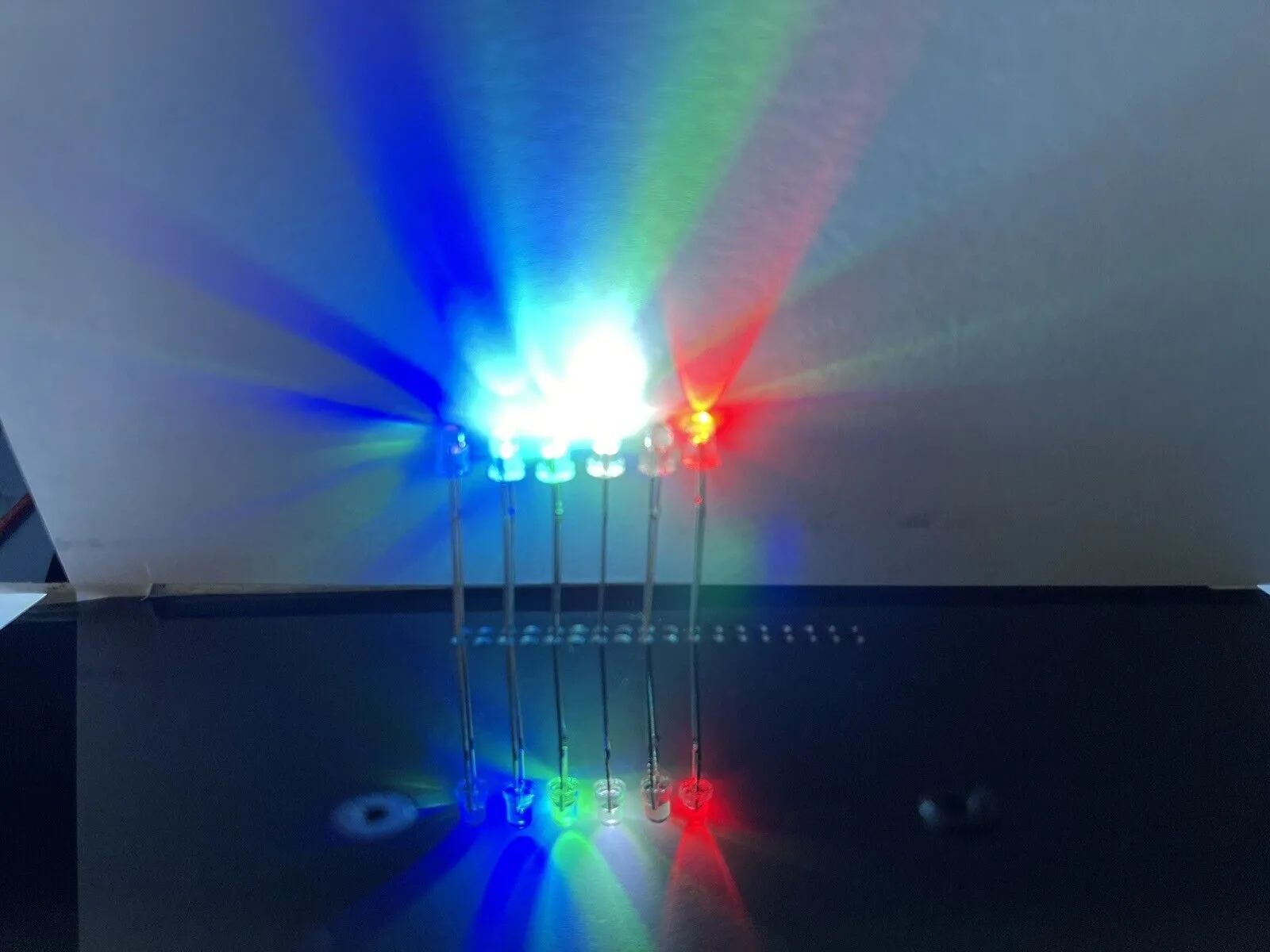

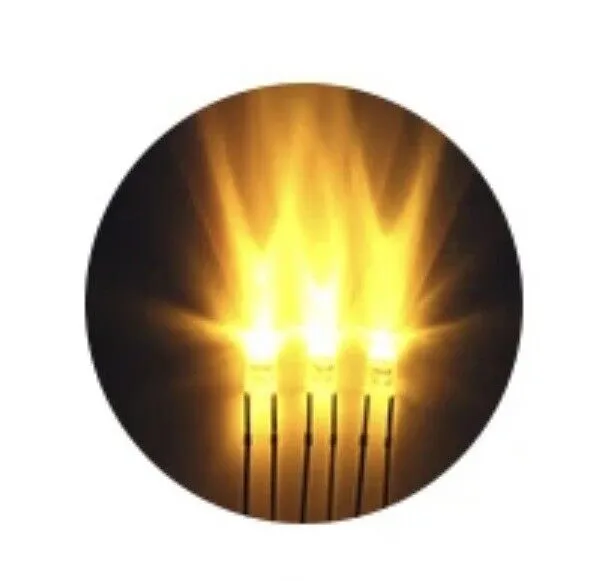

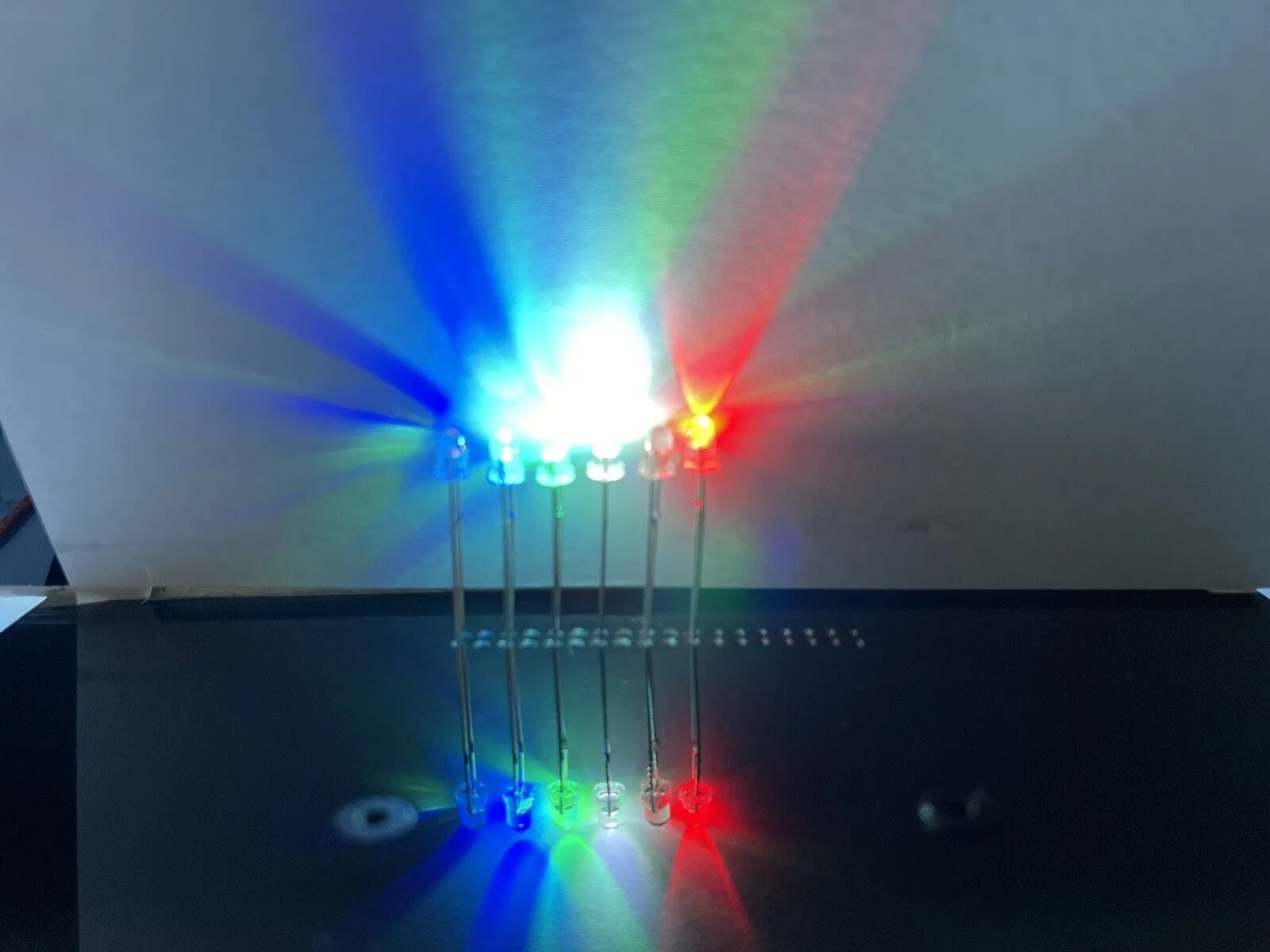

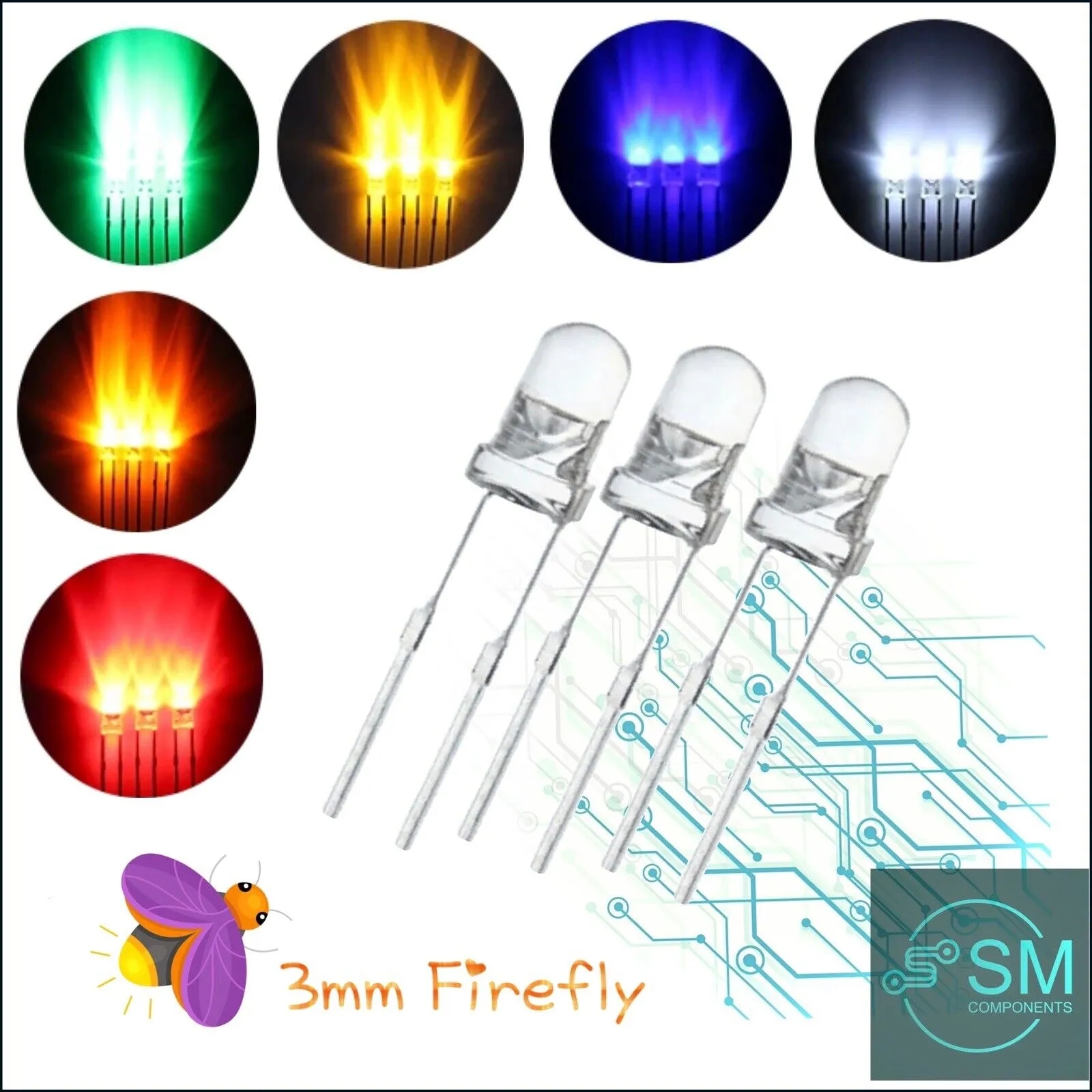

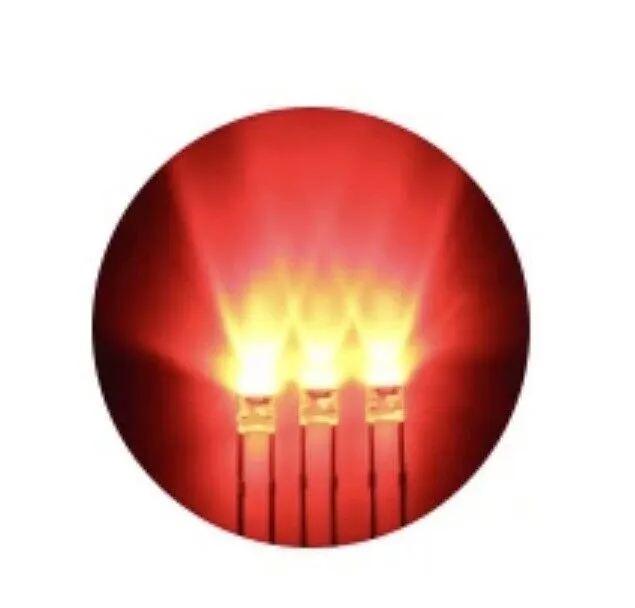

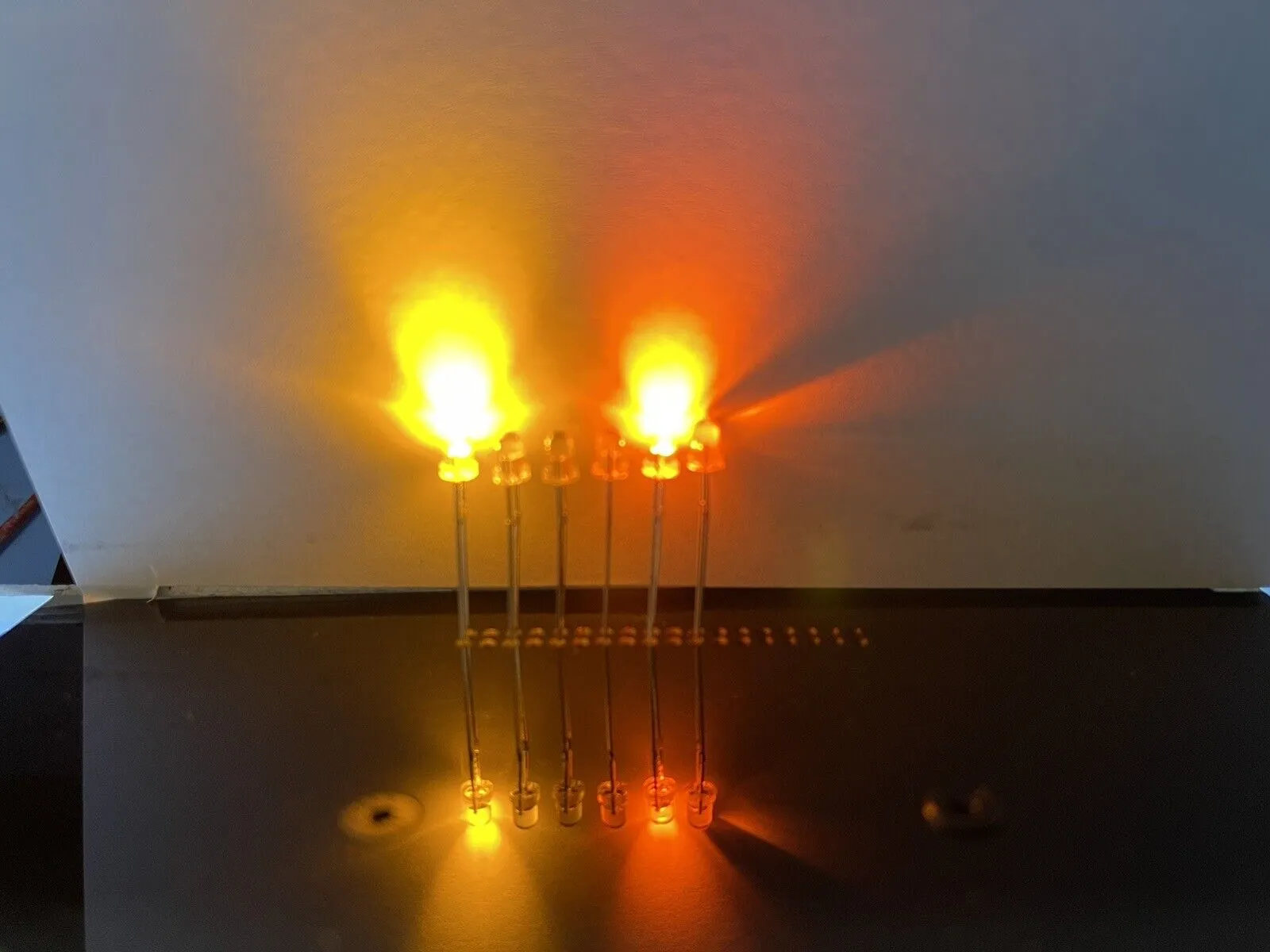

The 3mm breathing / fading round top led will automatically start fading / breathing once then slowly fade off.
The LED is similar to a plain flashing Led, with a slow turn-on ramp up of approximately 1.2 second, full power of approximately 1.2 second, and a fade out of approximately 1.2 second, with a flashing time of approximately 18 cycles per minute.
Diameter:3MM
Lens Colour: Clear
Colour: Red, Yellow, Blue, Green, White, Orange, (Colour Selection on Main Page).
Viewing Beam Angle: 20-25 degrees
Voltage :3.0-4.5v
Current :20 mA

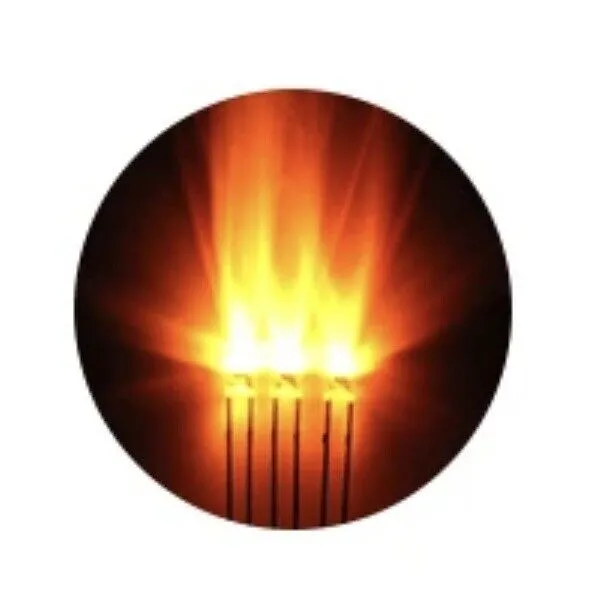

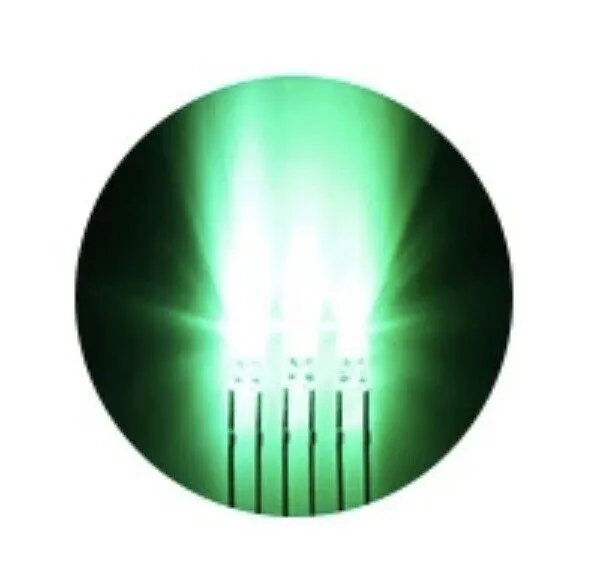

Wavelength : Red (620-630nm),Yellow (585-590nm),Blue (460-465nm),Green (515-520nm),Orange (605-610nm)

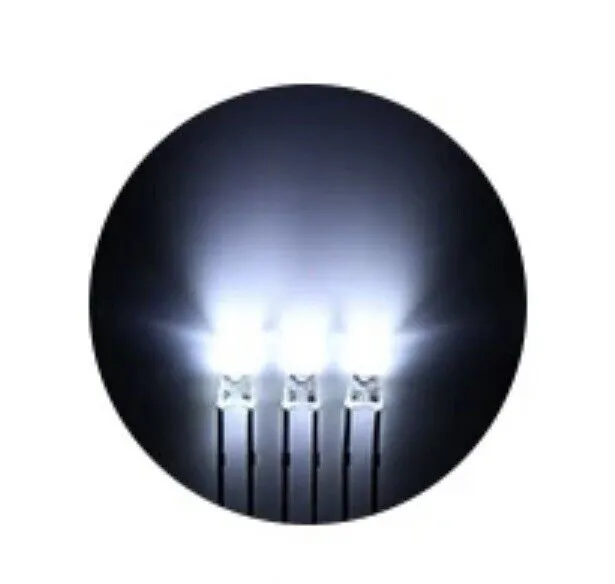

Colour temperature:White (6000-7000K)
IV: 5000-10000mcd
You will receive 50 Individual leds of you selected colour.
